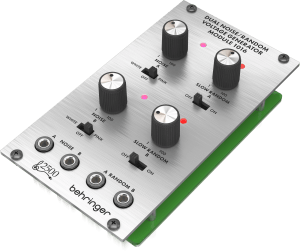

Behringer DUAL NOISE / RANDOM VOLTAGE GENERATOR MODULE 1016 Legendary 2500 Series Dual Noise Source Module for Eurorack

SKU:

Classic 1016 analog dual noise and random voltage generator module from the ’70s
Authentic reproduction of the circuitry from the “2500” Series
The module consists of 2 identical white/pink noise and Random Voltage generators
The noise outputs are generated from 2 independent transistor noise sources
Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
2 output attenuators enable the outputs to be reduced in volume
White or Pink Noise are selectable via slide switch and LED indication
Random Voltage can be switched on and off via slide switch with LED indication
White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
Slow random voltages feature peak signal power between 1 Hz and 10 Hz
Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V
